Welcome to Unwired Prime
Wireless sensor intelligence that fits your business
Nexus Wireless Fence (HA4000)
A complete geofencing system that gives you real-time, instant updates for the whereabouts of loved ones or patients who suffer from memory loss.
Standard Sensors
- Motion
- Location
Nexus Contact Tracer (HA4100)
A contact tracing solution for crowded environments such as offices, conventions, and weddings.
Standard Sensors
- Motion
- Ultra secure, private tracing proximity between one another in a crowded room.
- Alert notifications
Nexus FINDME (HA4200)
An asset tracker for your most precious asset, your loved ones. The HA4200 monitors a person’s location within 50m accuracy.
Standard Sensors
- Motion
- Location
Remote Management
Text, email, and voice call alerts Alerts for power disruption Alerts for low battery voltage Temperature sensor monitoring with alarm HIGH/LOW alerts Mobile, Website Apps to manage devices Dual mode NC and NO dry contact relay support Safety warning LED when incorrectly plugged into AC source 3+ year battery life Mobile data plan included
Nexus Asset Tracker (HA7100A)
Ultra compact device is packed with features ranging from
- Indoor/outdoor sub 50m positioning – GPS+4G+WIFI+BLE
- Pressure, Temperature, Humidity, Light, and Motion sensing
- Ultra thin form factor
- Long battery life
- Global Coverage
- Cellular/WIFI/BLE Connection options.
Nexus Contact Tracer (HA4100)
Ultra compact device is packed with features ranging from
- Indoor/outdoor sub 50m positioning – PoLTE+WIFI+BLE
- Pressure, Temperature, Humidity, Light, and Motion sensing
- Ultra thin form factor
- Long battery life
- Global Coverage
- Cellular/WIFI/BLE Connection options
Nexus FINDME (HA4200)
An asset tracker for your most precious asset, your loved ones. The HA4200 monitors a person’s location within 50m accuracy.
Standard Sensors
- Motion
- Location
Remote Management
Text, email, and voice call alerts Alerts for power disruption Alerts for low battery voltage Temperature sensor monitoring with alarm HIGH/LOW alerts Mobile, Website Apps to manage devices Dual mode NC and NO dry contact relay support Safety warning LED when incorrectly plugged into AC source 3+ year battery life Mobile data plan included
Blank Content Industrial
Blank Content Industrial
LIVESTOCK MONITORS
- Sensors
- Electric power
- Water Quality
- Water level
- Temperature
GREENHOUSES
- Sensors
- Indoor:
Temperature, Humidity, CO2, light - Outdoor:
Temperature, Humidity, Plant & Soil: Volumetric water content, leaf wetness, soil water potential
ASSET TRACKING
- Sensor Monitoring
- Motion activation
- Shock & vibration
- Temperature
- Humidity
- Light
- Weight
- Indoor/Outdoor Tracking
- BLE (indoor)
- GPS (outdoor)
- Communication (LTE CATM)
Remote Management
Text, email, and voice call alerts Alerts for power disruption Alerts for low battery voltage Temperature sensor monitoring with alarm HIGH/LOW alerts Mobile, Website Apps to manage devices Dual mode NC and NO dry contact relay support Safety warning LED when incorrectly plugged into AC source 3+ year battery life Mobile data plan included
Climate Change
Climate Change

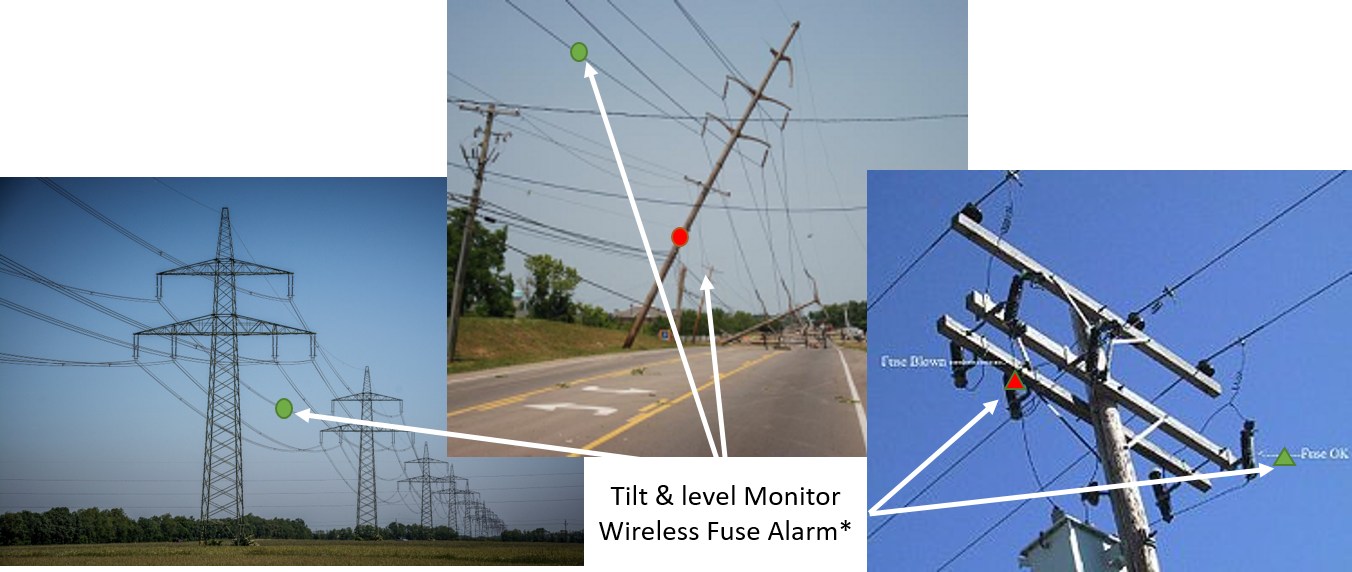

Wireless Fuse Alarm Monitor (HA3100A)
Standard Sensors
- SPST dry contact switch
- GPS Location
- Temperature
Sensors Upgrades:
- Motion activation
- Shock and vibration
- Humidity
Features:
- Multi-Carrier support
- Internal GPS receiver
- Battery life (3,5,10 Yr. options)
- DNP3.0 message format
- Temperature range: -40 to + 70 C
- Embedded SIM card
- Data to be delivered directly to end user via private LTE connection (electric utility control center)
- OTA firmware upgradable
Tilt & Level Monitor (HA3100B)
Standard Sensors
- Gyroscope
- GPS Location
- Temperature
Sensors Upgrades:
- Motion activation
- Shock and vibration
- Humidity
Features:
- Multi-Carrier support
- Internal GPS receiver
- Battery life (3,5,10 Yr. options)
- DNP3.0 message format
- Temperature range: -40 to + 70 C
- Embedded SIM card
- Data to be delivered directly to end user via private LTE connection (electric utility control center)
- OTA firmware upgradable
Two 10/100 RJ45 Ethernet connections (HA3100C)
Interface Specifications
- Two RJ45 serial connections (RS232 / RS485)
- Two 10/100 RJ45 Ethernet connections
Physical Specifications
- DIN rail mountable
- External Device antennas
- Operating Temperature -40 to 158 degrees F (-40 to +70 C)
- Operating humidity from 0 to 95% non-condensing
- IEEE 1613-2003 Class 2
- NEMA 12
- IEC 60529
- Class 1, Division 2, Groups ABCD hazardous locations
- 3 Analog inputs
- 2 Digital input (SPI)
- Embedded SIM card
Power Specifications
- 0 to 60VDC
- Solar power [optional]
RF Specifications
- LTE Band 8 (900)
- LTE BAND 48 (CBRS)
- LTE BAND Current US LTE Carriers
- 4G LTE CAT-4
- LTE-M
- NB-IoT
- 2CA
- 2x2 TxRx MIMO
- RAT and Band Class locking

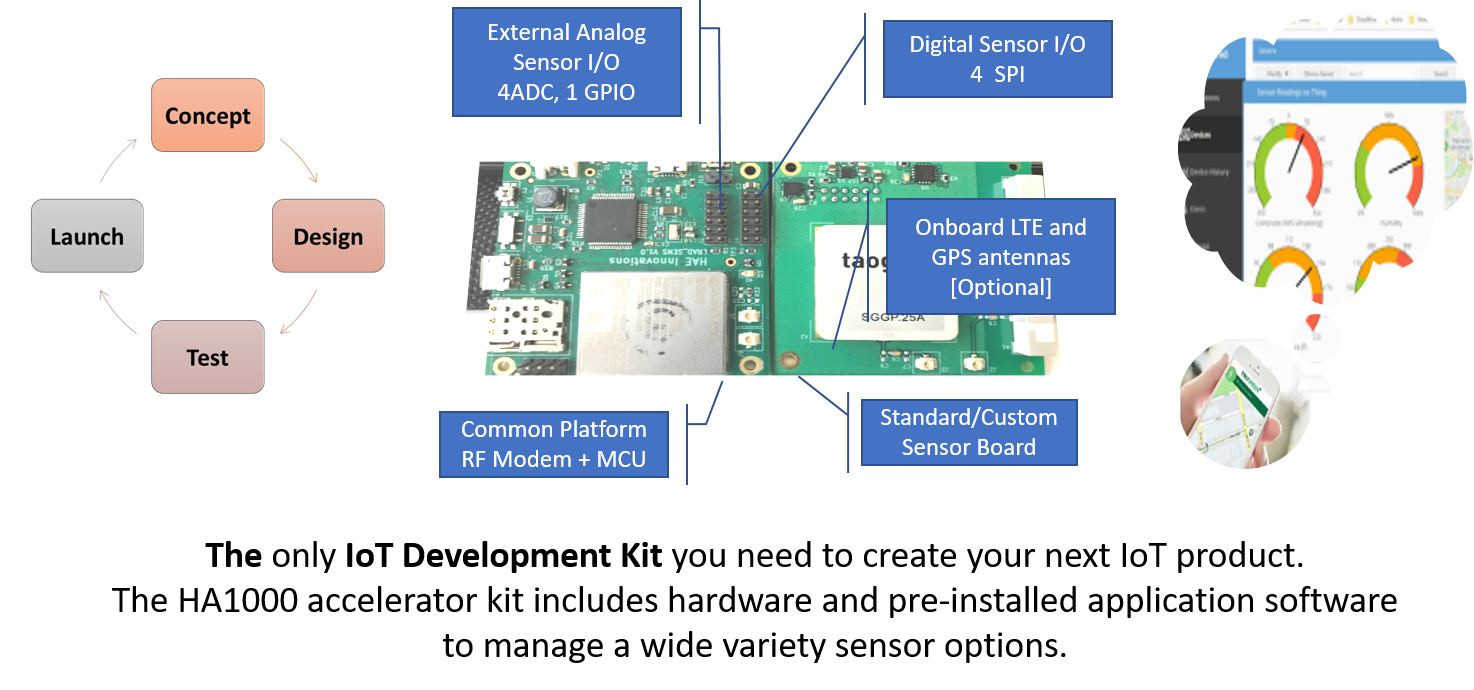

FEATURES
Standard Sensors
- Cellular connectivity LTE,LTEM, NBIoT
- Pre-selected sensor boards,
- Network Communications module
- Bootloader module
- SPI sensor software templates
- ADC sensor software templates
BENEFITS
Standard Sensors
- Carrier certified as end devices
- Ultra low power consumption
- Wide range of sensors supported
- Data plans for many business models
- Secure cloud device management
- Field upgradeable sensors
SECURE CLOUD
Standard Sensors
- Device Management
- Alarm notification: email, text, audio calls
- Remote device configuration
- Remote application updates
- Secure FOTA (modem) updates
About Us
UnwiredPrime is leading supplier of certified IoT reference designs for business clients in Agriculture, Industrial, and Utility. Our 30+ years of RF, Embedded software, and secure cloud designs are well suited to a wide variety of business models.
Hesham ElHamahmy
Hesham is an innovative leader with a broad base of expertise in sales, marketing, and operations with a great track record of driving growth at start-ups, turnarounds, and growing high tech companies.
Sonny ElHamahmy
Sonny is is an accomplished thought leader with an established track record of helping businesses mature into market leaders. He has successfully helped venture backed start-ups and leading enterprise IT organizations. Additionally, he excels in establishing high performance teams and fostering a strong organizational culture. With an exceptional record in identifying and negotiating valuable strategic business partnerships, Sonny is well-recognized in the enterprise technology and cloud computing arena. His intuitive knowledge of the technology ecosystem and in-depth experience have helped build long standing relationships across a vast network of customers and industry leaders. He guides the Unwired Prime team to productively work with partners and clients, enabling us to establish enduring business relationships that are mutually constructive.
Contact Details
UnwiredPrime
35 Tamarack Circle
Skillman NJ, 08558
800-423-1947 [Sales ext 700, Support
ext 701
sales@unwiredprime.com
